Environmentally Aware

Pacopatch

Over 100,000 drainage gullies and public utility ironworks have been successfully reinstated with Pacopatch!

Pacopatch is a revolutionary polymer based bituminous reinstatment system developed specifically for the single reinstatement of manholes and gullies. Pacopatch comes with a 5 year material warranty, is voidless, requires no compaction and can be trafficked within an hour of completion. Pacopatch has been laid 0.5 metre deep and was trafficked the same day.

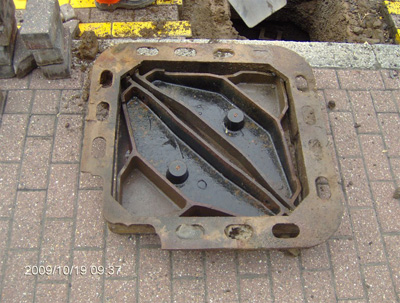

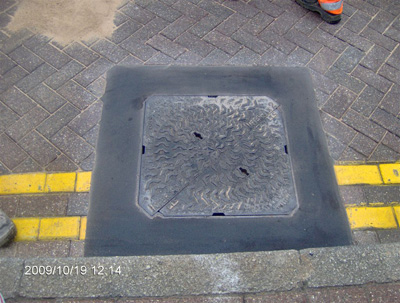

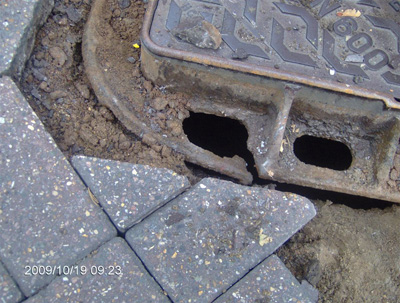

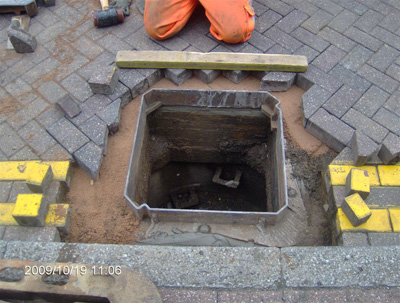

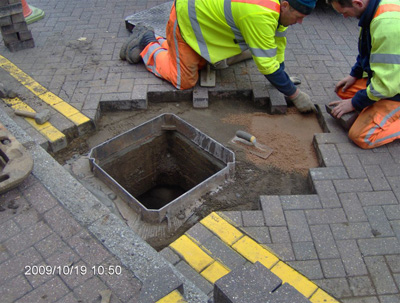

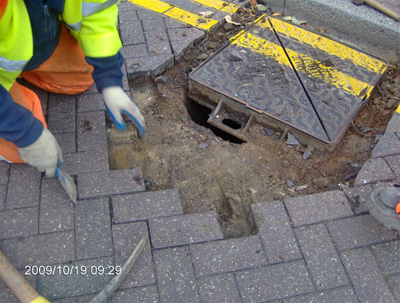

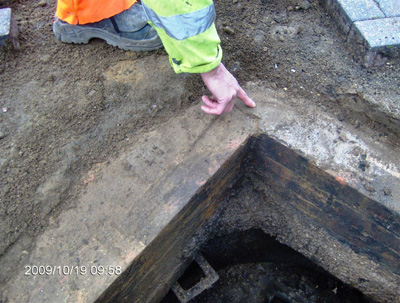

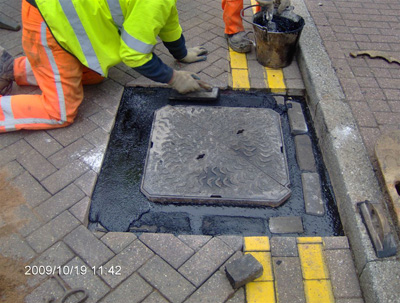

Pacopatch before during and after process
for work on a manhole in Tring

Tring Manhole 1 Tring Manhole 2 Tring Manhole 3 Tring Manhole 4 Tring Manhole 5 Tring Manhole 6 Tring Manhole 7 Tring Manhole 8 Tring Manhole 8 Tring Manhole 9

The revolutionary system comprises a hot applied asphalt grout into which factory prepared cold asphalt bricks (containing a minimum 45% of coarse aggregate) are placed.

The cold bricks are designed to absorb the heat from the hot asphalt grout whilst forming a monolithic asphalt structure. The system cools to ambient temperature much more quickly providing engineers with the ability to arrange for repairs to be completed within restricted working periods and the road reopened to traffic.

Pre-coated or dry chippings are applied to the finished surface to provide a non-skid surfacing complying with UK legislative specifications.

Speciality training for third parties either on site or in house both to competent asphalters and other tradesmen especially in the field of paving and reinstatement of roads and footways using Pacopatch®. These include coloured and printed mastic asphalt products and acid and fuel resistant materials.

Pacopatch  Reinstatement System

Pacopatch is a polymer modified mastic asphalt permanent reinstatement system primarily designed for use around manholes and other street ironworks. The system comprises the placing of Quality Assured factory manufactured, mastic asphalt bricks (to BS1447:1998 incorporating 45% recycled coarse aggregate) into a layer of polymer modified mastic asphalt grout.

The process is completed by backfilling with additional grout to produce a voidless, impermeable, monolithic and permanent reinstatement which can be completed in a variety of surface finishes. Pacopatch requires no compacting, is applied by hand float and enables applicators to economically patch even very small, irregular areas, to a consistent, voidless standard. There is no waste when using Pacopatch.  The need for and the cost of collecting an excess of hot materials from a quarry is eliminated, as is the reliance on the plant being open for night and weekend collections. Pacopatch is delivered in a palletised format providing the user with a 24/7 availability all year round. Pacopatch is a one off application, which produces a permanent reinstatement requiring  no temporary measures or subsequent repair visits.

Description

Pacopatch is a two part mastic asphalt system comprising:

1) Pacogrout® (supplied in 10kg blocks, on pallets, for remelting).
2) Pacobrick® (supplied in 5kg bricks, on pallets, for immediate use).

Road repairs in Harston still strong after 2 years when other surfaces are not

Specification

Pacogrout®
A paving grade mastic asphalt, manufactured in accordance with the general requirements of BS 1447:1988 with regard to aggregate grading and binder content. Pacogrout® utilises a  purpose designed polymer modified asphaltic cement manufactured under refinery controlled conditions to a BS EN ISO 9001:2008 Quality System. The coarse aggregate content is in accordance with Clause 5.3.1. of BS 1447.

Properties of asphaltic cement:

Penetration @ 25°C 15 - 25 dmm
Solubility in trichloroethylene 92% min.


Pacobrick®
Pacobricks are factory produced under controlled conditions, to a BS EN ISO 9001:2008 Quality System. They are a proprietorial paving grade of mastic asphalt manufactured within the general specification guidelines of BS 1447:1988 Table 3, Grade H, The brick manufacturing process utilises a minimum 90% recycled bituminous materials.

Surface Finish

In addition to BS 1447:1988 Appendices A3 & A4, Pacopatch can be completed with a wide variety of alternative surface finishes.
